BRIO QUICK RUN 120 ZERO CLEARANCE F TRACK

BRIO QUICK RUN 120 QR120Z F TRACK ZERO CLEARANCE DOOR TRACK

Widely used in internal residential and commercial applications.
To accommodate different building designs, panels can slide to one or both sides.
For ease of operation it is recommended that the panel width should not exceed 75% of panel height.
Timber panels for interior use can be of flush construction or glazed.
Timber panels for industrial applications should be framed, ledged and braced. Metal panels should be constructed of box section, channel or angle framing, well braced and clad with flat or corrugated sheets.
Standard Sets and Packs

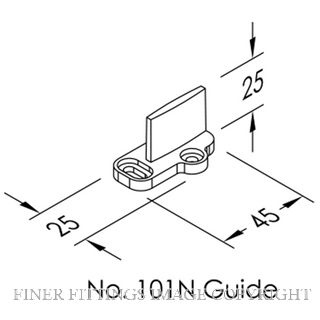

Sets comprise of top track, hangers, doors stops, nylon guides, timber
screws and instructions.

Maximum Panel Height - 3000mm
Maximum Panel Weight - 120kg
Minimum Panel Thickness - 32mm
Maximum Panel Width - 950mm

Click To View Video Brio Quick Run 120 Zero Clearance

ITEM NUMBER	INCLUDED IN KITSET

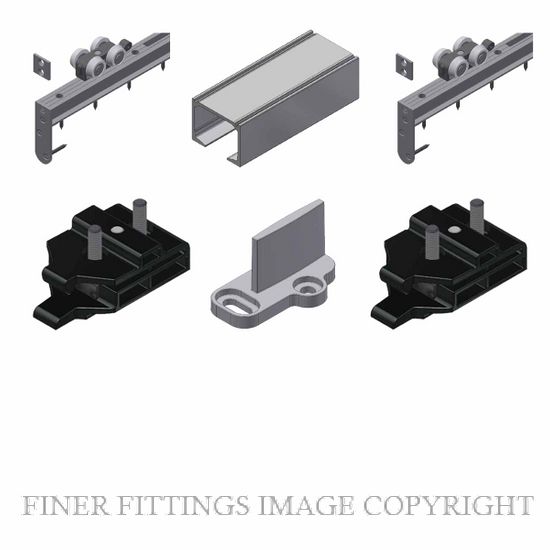

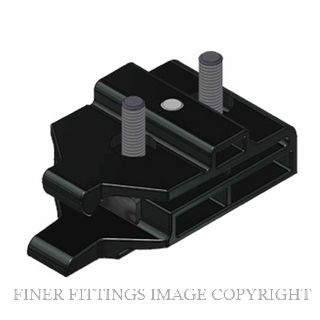

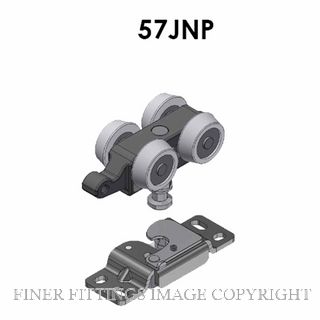

BIQR120Z C20F 1	Quick Run 120F 2m kit set with zero clearance door hangers and clip stops Comprises 2m 120F track, two QRZC door hangers, two clip stops, one saw cut guide
BIQR120Z C30F 1	Quick Run 120F 3m kit set with zero clearance door hangers and clip stops Comprises 3m 120F track, two QRZC door hangers, two clip stops, one saw cut guide

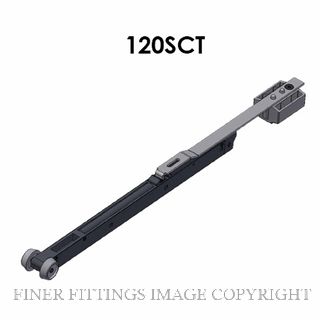

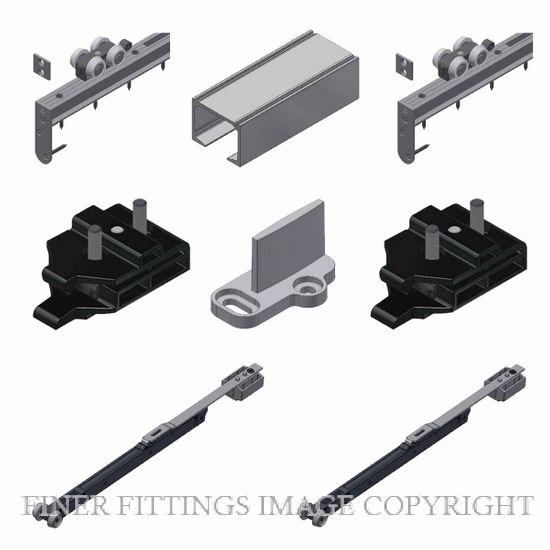

BIQR120Z S20F 1	Quick Run 120F 2m kit set with zero clearance door hangers and clip stops Comprises 2m 120F track, two QRZC door hangers, two soft close units, one saw cut guide
BIQR120Z S30F 1	Quick Run 120F 2m kit set with zero clearance door hangers and clip stops Comprises 3m 120F track, two QRZC door hangers, two soft close units, one saw cut guide

Downloadable Files

Downloads

Code	Supplier Part Number	Name	Unit	Overall Length	Price	Quantity
BIQR120Z C20F 1	QR120Z-C20F/1	BRIO QR120Z-C20F/1 QUICK RUN 120 ZERO CLEARANCE KIT 2MTR CLIP STOP Unit: Set Overall Length: 2000mm	Set	2000mm	$374.37 (inc GST)	Quantity:
BIQR120Z C30F 1	QR120Z-C30F/1	BRIO QR120Z-C30F/1 QUICK RUN 120 ZERO CLEARANCE KIT 3MTR CLIP STOP Unit: Set Overall Length: 3000mm	Set	3000mm	$415.62 (inc GST)	Quantity:
BIQR120Z S20F 1	QR120Z-S20F/1	BRIO QR120Z-S20F/1 QUICK RUN 120 ZERO CLEARANCE KIT 2MTR SOFT CLOSE Unit: Set Overall Length: 2000mm	Set	2000mm	$549.48 (inc GST)	Quantity:
BIQR120Z S30F 1	QR120Z-S30F/1	BRIO QR120Z-S30F/1 QUICK RUN 120 ZERO CLEARANCE KIT 3MTR SOFT CLOSE Unit: Set Overall Length: 3000mm	Set	3000mm	$590.73 (inc GST)	Quantity:
