BRIO CENTREFOLD 35KG FOLDING DOORS

BRIO CENTREFOLD 35KG FOLDING DOOR TRACK

APPLICATION

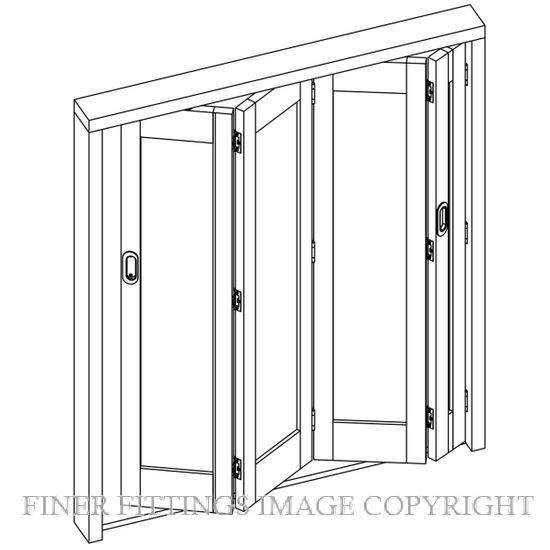

Suitable for residential or light commercial centre folding partitions.
Panels are hung centrally under the lintel and can fold to one or both sides of the opening.
To cover any width of opening, any number of folding units can be used.

A guide system across the floor must be used on units of 3 and a half panels or more.
Folding units of up to five full panels and one half panel can be hinged to a post.
Floating units consist of five full panels.
Access should be through either a separate door hinged to a post or a door hinged in one of the folding panels.
Panels should be constructed to provide secure fitting for hangers, hinges and guides and can be flush, panelled or glazed.

MAX PANEL HEIGHT2400mm
MAX PANEL WEIGHT35kg
MIN PANEL THICKNESS35mm
MAX PANEL WIDTH920mm
COMPONENTS REQUIRED
 DESCRIPTIONITEM NUMBER
Top TrackBI100

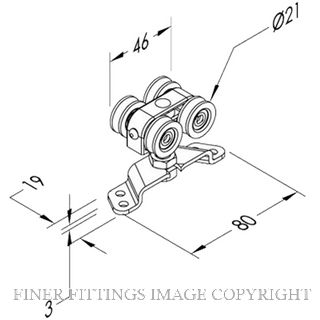

HangerBI57ENP
Door StopBI20DS
HingesBI282
Track Brackets required 900mm maximum spacingBI1SS-250
GuideBI106SSMF

Guide Channel

BI96W
ACCESSORIES
ITEMPART #
 Flush PullBI401
Flush Bolt 190mm BI456
Code Image Product Name Product Features Door Thickness Brand Function Unit Door Type Price Quantity
BI CF35 BRIO CENTREFOLD 35KG FOLDING DOORS
  • Product Features:
    Top Hung Track
  • Door Thickness:
    35mm Min
  • Brand:
    Brio
  • Function:
    Hallway-Room Dividing
  • Unit:
    Each
  • Door Type:
    Timber Interior
Top Hung Track 35mm Min Brio Hallway-Room Dividing Each Timber Interior POA
