BRIO PIVOTFOLD 75KG FOLDING DOORS

BRIO PIVOTFOLD 75KG FOLDING DOOR TRACK

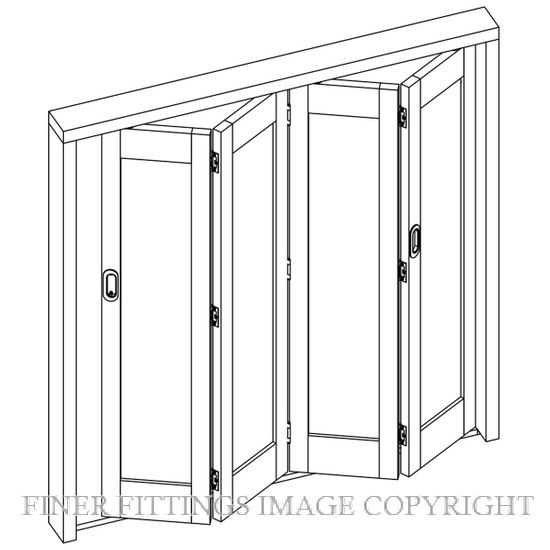

APPLICATION

Suitable for residential and light commercial pivot folding partitions,with all panels of equal width.
Panels can fold to one or both sides of the opening.

Pivot hardware enables an end folding interior shutters to be designed using standard width panels with no cutting down of the panel adjacent to post.
To cover any width opening, any number of folding units can be used.

DOOR SPECIFICATION

Use Pivotfold only if panels must be of equal width. Endfold is preferred because the first panel is hinged to a post. See Data Sheet D110.
The folding unit is not hinged to a post, but is pivoted in the track and off the floor.
End folding units of up to eight panels can be pivoted to each side of the opening. A pivoted unit with an odd number of panels provides a hinged access door.
End folding floating units consist of four, six or eight panels.
Clearance between panels to be 2mm minimum.
Door panels should be constructed to provide secure fitting for the pivot sets, hangers, hinges and guides and can be flush, panelled or glazed.

FOR RELATED PRODUCTS REFER BELOW



MAX PANEL HEIGHT 3300mm
MAX PANEL WEIGHT 75kg
MIN PANEL THICKNESS 44mm
MAX PANEL WIDTH 900mm



COMPONENTS REQUIRED
 ITEM PART #

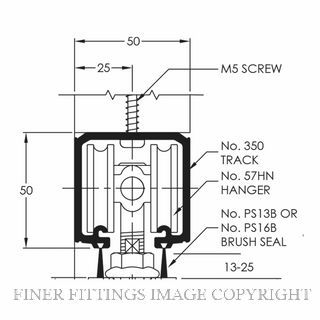

TOP TRACK BI250

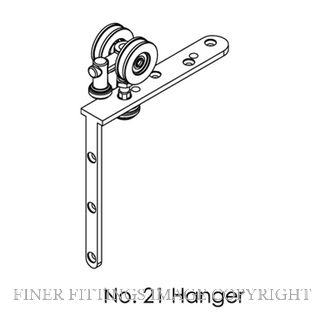

END HANGER BI21HN

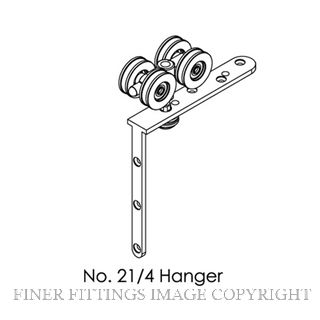

INTERMEDIATE HANGER BI21-4HN

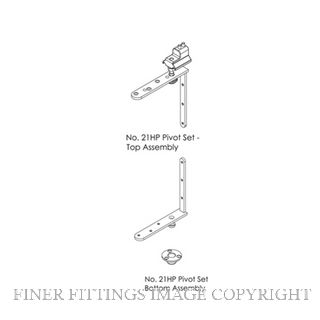

TOP & BOTTOM PIVOT SET  BI21HP

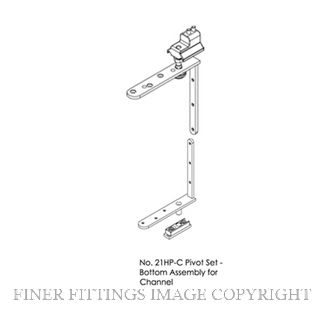

TOP & BOTTOM PIVOT SET FOR CHANNEL BI21HP-C

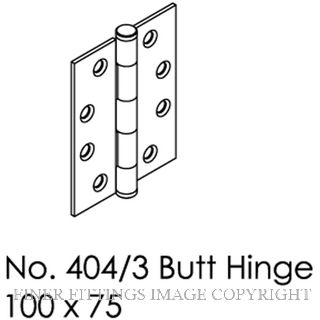

HINGES BI404-3
TRACK BRACKETS REQUIRED 900MM MAXIMUM SPACING BI1SS-250

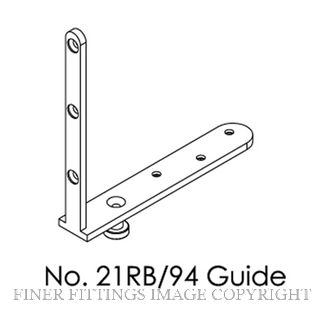

BOTTOM GUIDE BI21RB-94
BOTTOM CHANNEL ALUMINIUM BI94A
BOTTOM CHANNEL WITH POLYPROPTLENE BI94PPA



ACCESSORIES
ITEM PART #
 FLUSH PULL BI401
FLUSH BOLT 190MM  BI456
Code Image Product Name Product Features Door Thickness Brand Function Unit Door Type Price Quantity
BI PF75 BRIO PIVOTFOLD 75KG FOLDING DOORS
  • Product Features:
    Top Hung Track
  • Door Thickness:
    44mm
  • Brand:
    Brio
  • Function:
    Hallway-Room Dividing
  • Unit:
    Each
  • Door Type:
    Timber Interior
Top Hung Track 44mm Brio Hallway-Room Dividing Each Timber Interior POA
