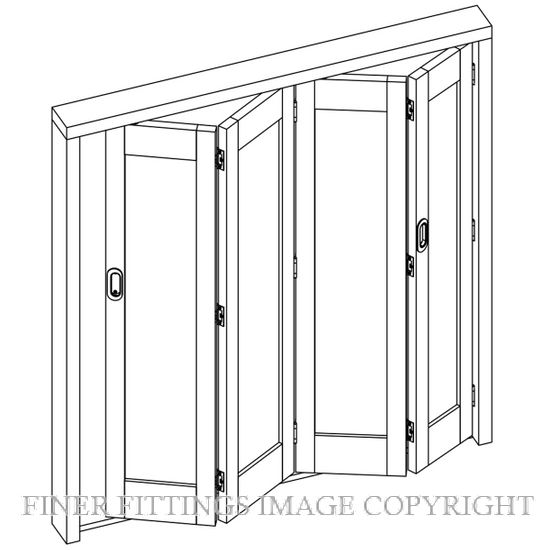

BRIO ENDFOLD 75KG FOLDING DOORS
Suitable for residential or light commercial end folding partitions.
Folding units of up to eight panels can be hinged to a post. A unit with an odd number of panels, hinged to a post, provides a hinged access door. Alternatively, access should be through either a separate door hinged to a post or a door hinged in one of the folding panels. Floating units consist of four, six or eight panels. Instruction on panel width calculation is shown overleaf. Clearance between panels to be 2mm minimum. Door panels should be constructed to provide secure fitting for the hangers, hinges and guides and can be flush, panelled or glazed.
|MAX PANEL HEIGHT||3300mm|
|MAX PANEL WEIGHT||75kg|
|MIN PANEL THICKNESS||44mm|
|MAX PANEL WIDTH||900mm|
