BRIO WEATHERFOLD 4S 50KG 3 DOOR TRACK KIT

BRIO WEATHERFOLD 50KG FOLDING DOOR TRACK KIT 3 DOORS 1 WAY

APPLICATION

For residential and commercial folding doors where weatherproofing of the opening is required.
This section covers Weatherfold 4s 50 hardware suitable for non mortice timber applications.
When extra corrosion resistance is required Weatherfold 4s is available with precision stainless steel bearings.

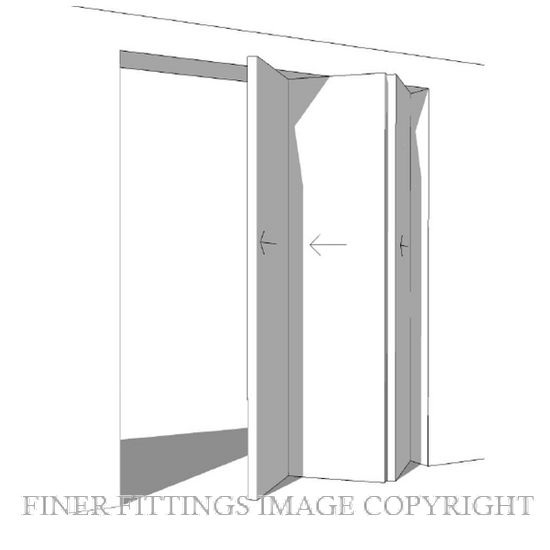

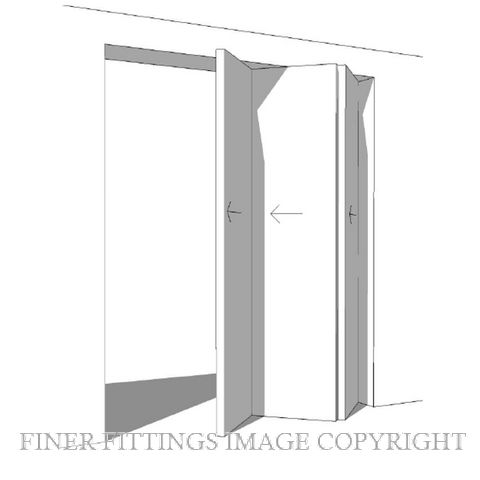

WEATHERFOLD 50KG 3   3 DOORS ONE WAY

 PLEASE CONTACT US FOR A SPECIFICATION

WEATHERFOLD TRACK SPECIFICATIONS
MAX PANEL HEIGHT 3000mm
MAX PANEL WEIGHT 50kg
PANEL THICKNESS 35-68mm
MAXIMUM PANEL WIDTH 1000mm
FITS MAXIMUM OPENING WIDTH 3000mm

COMPONENTS INCLUDED IN KITSET ITEM NUMBER  QUANTITY
BRIO 180 TOP TRACK ANODISED 3MTR  BI180-A30  1
BRIO 94PPA POLYPROPYLENE CHANNEL 3MTR  BI94PPA-A30  1
BRIO PIVOT SET NON MORTICED BIBWS1-100HSS
 1
BRIO INTERMEDIATE HANGER SET NON MORTICED  BIBWS4-50SHSS   1
 OFFSET HINGE HANDLE SET NON MORTICED BIBW7-100HSS  1
BRIO BI456RSN RADIUS FLUSH BOLTS   BI456RSN  2
ADDITIONAL SEALS THAT MAY BE REQUIRED BUT NOT INCLUDED IN KITSET
FRAME SEAL   BIAQ21 BL 1000
BRIO TRACK SEAL BIPS13 BL 1000
DOOR SEAL   BIAQ48 BL 1000
DOOR SEAL    BIAQ63 BL 1000



Code Image Product Name Product Features Door Thickness Brand Function Unit Door Type Price Quantity
BI WF4S 50 3 BRIO WEATHERFOLD 4S 50KG 3 DOOR TRACK KIT
  • Product Features:
    Top Hung Track
  • Door Thickness:
    35-68mm
  • Brand:
    Brio
  • Function:
    Folding Exterior Doors
  • Unit:
    Kit
  • Door Type:
    Timber Exterior
Top Hung Track 35-68mm Brio Folding Exterior Doors Kit Timber Exterior
Retail: $1,150.13 (inc GST)
Special: $977.60 (inc GST)
